Home / EV PARTS / Controllers / MOTOR Controller-EM350S

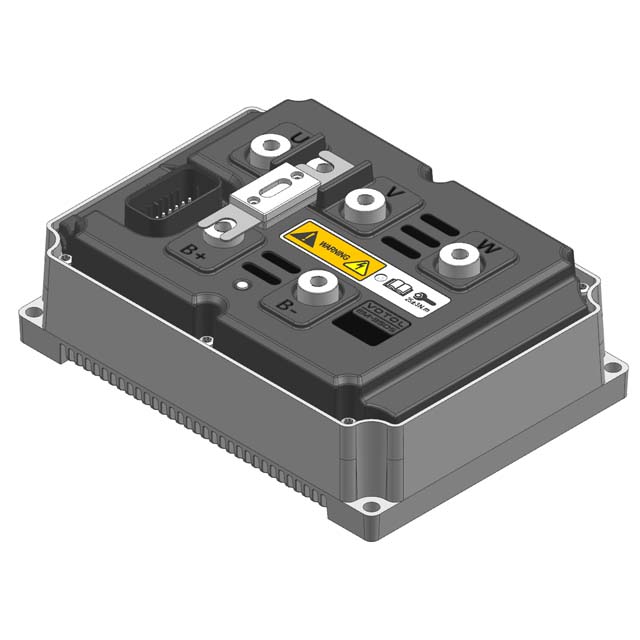

MOTOR ECU-EM350S
MOTOR ECU-EM350S MOTOR ECU-EM350S

loading

MOTOR Controller-EM350S

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Performance characteristics
  • Function protection: over and under voltage protection, charging protection, overheating protection, short circuit protection, missing protection, blocking protection
  • Support communication protocols: UART, LIN, CAN, HALL
  • Adjustable software interface: supports computer and APP
  • Motor sensor: Hall, SPI, differential, A\D
  • Motor controller over temperature protection
  • Protection grade IP67
  • Half slope assist: anti-slip
Availability:
Quantity:
Inquire Add to Basket


Item

Parameter

Product Name

48~60V

72V

Rated current

350A

350A

BOOST current

600A

600A

Peak current

1300A

1300A

Rated power

21000W

25200W

Max power

36000W

43200W

Weight

2430g

2430g

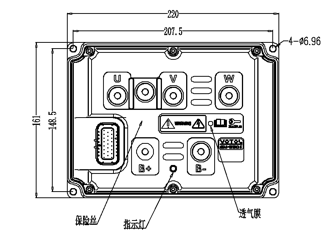

Size(mm)

220*161*90

Flux weakening ratio

200%

IP rating

IP67

Conmmunication mode

CAN/LIN

Interface type

VOTOL

Speed range

180Km/h
