Home / EV PARTS / Controllers / MOTOR Controller-EM300S
MOTOR ECU-EM300S
MOTOR ECU-EM300S MOTOR ECU-EM300S

loading

MOTOR Controller-EM300S

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Performance characteristics
  • Function protection: over and under voltage protection, charging protection, overheating protection, short circuit protection, missing protection, blocking protection
  • Support communication protocols: UART, LIN, CAN, HALL
  • Adjustable software interface: supports computer and APP
  • Motor sensor: Hall, SPI, differential, A\D
  • Motor controller over temperature protection
  • Protection grade IP67
  • Half slope assist: anti-slip
Availability:
Quantity:
Inquire Add to Basket


Item

Parameter

Product Name

48~60V

72V

Rated current

230A

230A

BOOST current

550A

550A

Peak current

650A

650A

Rated power

13800W

16560W

Max power

33000W

39600W

Weight

2180g

2180g

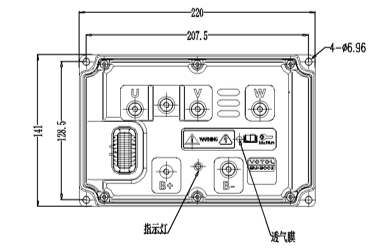

Size(mm)

220*141*68

Flux weakening ratio

200%

IP rating

IP67

Conmmunication mode

CAN/LIN

Interface type

VOTOL

Speed range

140Km/h
