Item | Parameter | |||||
Max speed（72V） | 70KM/H | 80KM/H | 80KM/H | 100KM/H | 110KM/H | 110KM/H |
Max speed（60V） | 58KM/H | 67KM/H | 67KM/H | 83KM/H | 92KM/H | 92KM/H |
Rated power | 4000W | 5000W | 5000W | 6000W | 7500W | 7500W |
Max power | 6200W | 7000W | 7000W | 9000W | 11000W | 11000W |
Peak torque | 205N.m | 180N.m | 260N.m | 227N.m | 257N.m | 270N.m |
Rated current | 50A | 70A | 70A | 80A | 105A | 105A |
Peak current | 80A | 100A | 105A | 125A | 150A | 150A |
Rated voltage | 72V | 72V | 72V | 72V | 72V | 72V |
Max RPM | 740Rpm | 900Rpm | 900Rpm | 1130Rpm | 1130Rpm | 1130Rpm |
Motor efficiency | ≥88% | ≥88% | ≥88% | ≥88% | ≥88% | ≥88% |
Motor type | 12-2.75-110CC-GT-740RPM V/T/S/4000W72VD02-V1.0 | 12-2.75-110CC-GTS-900RPM V/T/S/5000W72VD02-V1.0 | 12-2.75-125CC-GT-900RPM V/T/S/5000W72VD02-V1.0 | 12-2.75-125CC-GTS-1130RPM V/T/S/6000W72VD02-V1.0 | 12-2.75-125CC-GTR-1130RPM V/T/S/7500W72VD02-V1.0 | 12-2.75-125CC-TT-1130RPM V/T/S/7500W72VD02-V1.0 |
Motor controller | EM-85GTS EM-100-2-GT | EM-100-2-GT | EM-100-2-GTS | EM-100-2-GTS | EM-180-GTS | EM-180-GTS |
Position sensor type | Hall | |||||

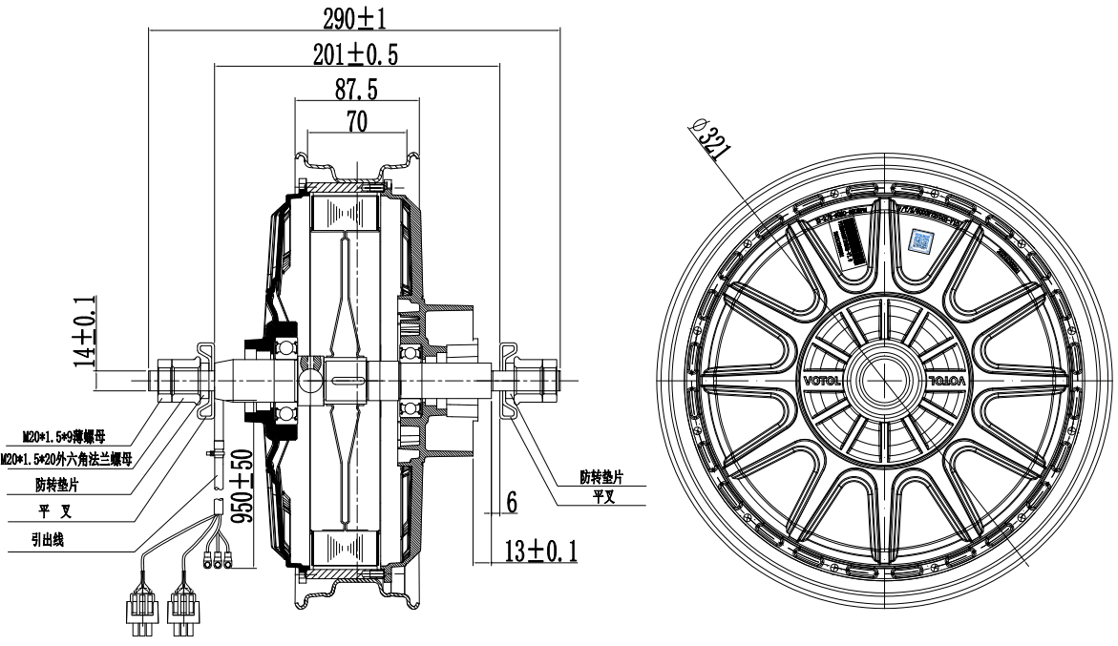

Size | J 12-2.75 | |||||
IP rating | IP67 | |||||
