Item | Parameter | |||
Max speed（72V） | 50KM/H | 65KM/H | 65KM/H | 70KM/H |
Max speed（60V） | 42KM/H | 54KM/H | 54KM/H | 58KM/H |
Rated power | 2500W | 3000W | 3000W | 3500W |
Max power | 3500W | 4200W | 4200W | 5300W |
Peak torque | 163N.m | 153N.m | 180N.m | 182N.m |
Rated current | 30A | 40A | 40A | 50A |
Peak current | 50A | 60A | 60A | 70A |
Rated voltage | 72V | 72V | 72V | 72V |
Max RPM | 510Rpm | 680Rpm | 680Rpm | 800Rpm |
Motor type | 12-2.15-50CC-GT-510RPM V/T/S/2500W72VD02-V1.0 | 12-2.15-50CC-GTS-680RPM V/T/S/3000W72VD02-V1.0 | 12-2.15-70CC-GT-680RPM V/T/S/3000W72VD02-V1.0 | 12-2.15-70CC-GTS-800RPM V/T/S/3500W72VD02-V1.0 |
Motor controller | EM-50-6 | EM-50-6 | EM-50-6 EM-85-GTS | EM-85-GTS |
Position sensor type | Hall | |||

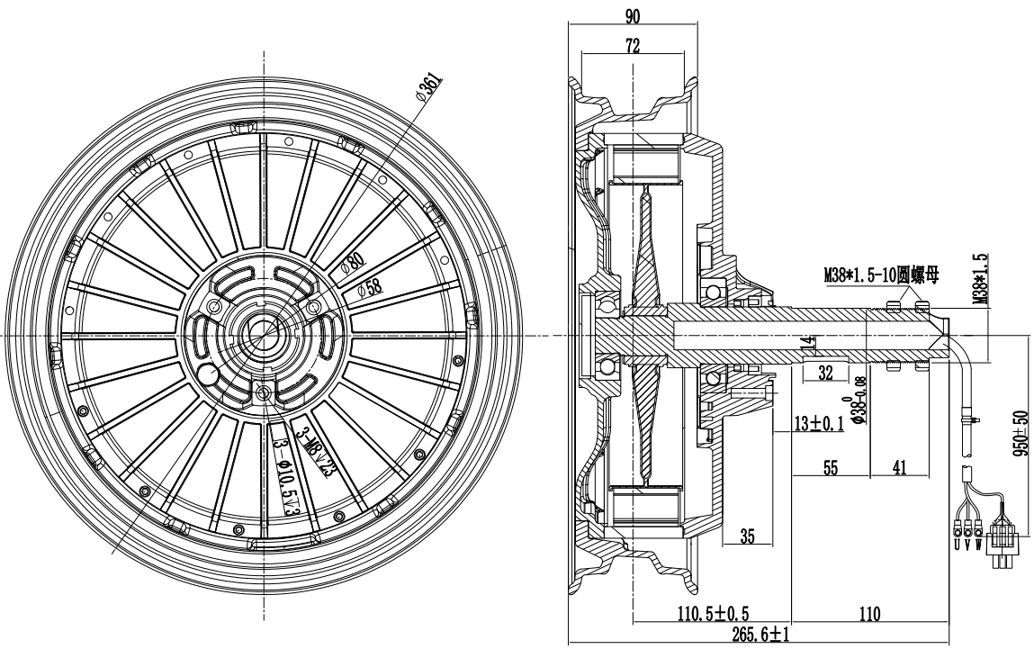

Size | J 12-2.15 | |||
IP rating | IP67 | |||
